OoOJoin  0.0.1
The next generation of out-of-order join operator
Introduction

The OoOJoin project contains the basic ideas and evaluation on a novel join operator that supports error-bounded processing on out-of-order tuples

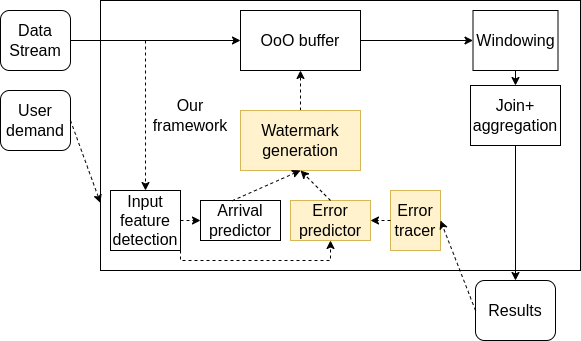

System Overview

The whole work is complete join operator, including basic windowing, buffering and join computation. However, watermark generation is the major focus.

Benchmark Tips

usage: ./benchmark [configfile]

Note
Require configs in configfile
  • "windowLenMs" U64 The real world window length in ms
  • "timeStepUs" U64 The simulation step in us
  • "wmTag" String The name of watermark generator, see WMTable class for all valid tags
  • "watermarkTimeMs" U64 The time of watermark assertion in ms, if use the ArrivalWM to generate watermark
  • "latenessMs" U64 The time of max allowed event lateness in ms, if use the LatenessWM to generate watermark
  • "maxArrivalSkewMs" U64 The maximum real-world arrival skewness in ms
  • "eventRateKTps" U64 The real-world rate of spawn event, in KTuples/s
  • "keyRange" U64 The range of Key
  • "operator" String The operator to be used, see OperatorTable class for all valid tags
  • "dataLoader" String The dataloader to be used, see DataLoaderTable class for all valid tags

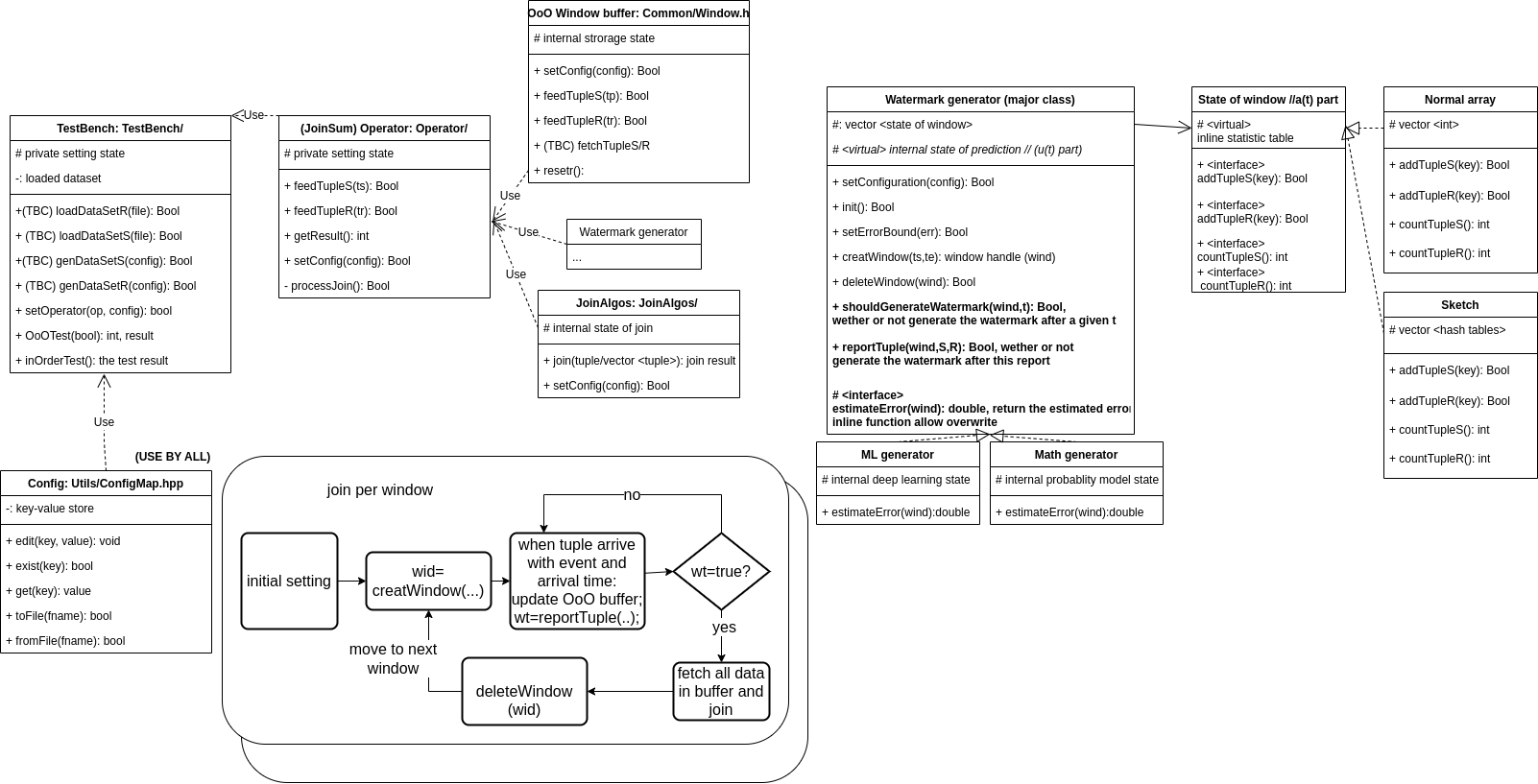

Code Overview

The code structure aligns well with system design.

How to extend

How to extend a new DataLoader

  • copy the TestBench/AbstractDataLoader.h, to your extension of TestBench/xxx.h, assume xxx is your new dataloader
  • make it inherited from AbstractDataLoader
  • creat the corresponding TestBench/xxx.cpp, fill in the virtual functions
  • your extension may require extra specific configs, please name as xxx_yyy, and then state them in TestBench/xxx.h and leave a default value in your setConfig
  • edit the TestBench/DataLoaderTable.cpp so the benchmark system can find it by tag
  • assign "dataLoader" in global config file into your own tag of xxx when running, so the data will be loaded by your xxx

How to extend a new Operator

  • copy the Operator/AbstractOperator.h, to your extension of Operator/xxx.h, assume xxx is your new Operator
  • make it inherited from AbstractOperator
  • creat the corresponding Operator/xxx.cpp, fill in the virtual functions
  • your extension may require extra specific configs, please name as xxx_yyy, and then state them in Operator/xxx.h and leave a default value in your setConfig
  • edit the Operator/OperatorTable.cpp so the benchmark system can find it by tag
  • assign "operator" in global config file into your own tag of xxx when running, so the data will be processed by your xxx operator
