OoOJoin::LatenessWM Class Reference

The class which generates watermark according to lateness of event time. A tuple with event time earlier than max (event time we have seen) - lateness will be discard and trigger a compute. More...

#include <WaterMarker/LatenessWM.h>

Inheritance diagram for OoOJoin::LatenessWM:

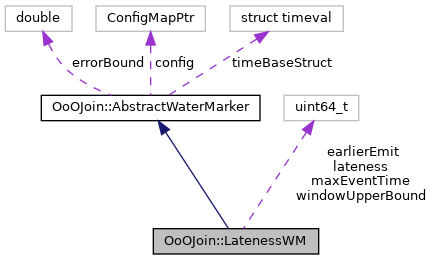

Collaboration diagram for OoOJoin::LatenessWM:

Public Member Functions
virtual bool	setConfig (ConfigMapPtr cfg)
	Set the config map related to this operator. More...
virtual size_t	creatWindow (tsType tBegin, tsType tEnd)
	creat a window More...
virtual bool	reportTupleS (TrackTuplePtr ts, size_t wid=1)
	report a tuple s into the watermark generator More...
virtual bool	reportTupleR (TrackTuplePtr tr, size_t wid=1)
	Report a tuple R into the watermark generator. More...
Public Member Functions inherited from OoOJoin::AbstractWaterMarker
void	setErrorBound (double err)
	Separately set the errorBound. More...
void	syncTimeStruct (struct timeval tv)
	Synchronize the time structure with outside setting. More...
virtual bool	init (void)
	init the generator More...
virtual bool	deleteWindow (size_t wid)
	delete the window and recycle its id More...

Protected Member Functions
bool	isReachWMPoint (TrackTuplePtr tp)
Protected Member Functions inherited from OoOJoin::AbstractWaterMarker
virtual double	estimateError (size_t wid=1)
	estimate the error of a window More...

Protected Attributes
tsType	lateness = 0
	The max allowed lateness, internal, in us.
tsType	earlierEmit = 0
	The time of earlier emit before reaching window bound, internal, in us.
tsType	windowUpperBound = 0
tsType	maxEventTime = 0
Protected Attributes inherited from OoOJoin::AbstractWaterMarker
double	errorBound
	The assigned error bound, read from configuration.
struct timeval	timeBaseStruct
	the base structure for time

Additional Inherited Members
Public Attributes inherited from OoOJoin::AbstractWaterMarker
ConfigMapPtr	config = nullptr

Detailed Description

The class which generates watermark according to lateness of event time. A tuple with event time earlier than max (event time we have seen) - lateness will be discard and trigger a compute.

Note

This one assert completeness by arrival time. Require configurations:

• "latenessMs" U64 Here used to control the lateness, in ms
• "earlierEmitMs" U64 Here used to allow earlier emit, in ms

When assign this final water mark, it "convince' the system that everything whose event time is earlier than window bound, is arrived, so we can provide the final result. The condition is

• windowUpperBound-earlierEmit+lateness<maxEventTime

Member Function Documentation

creatWindow()

size_t OoOJoin::LatenessWM::creatWindow ( OoOJoin::tsType  tBegin, OoOJoin::tsType  tEnd  )

virtual

creat a window

Parameters

tBegin	The begin event time of the window
tEnd	The end event time of the window

Returns

the id of created window

Reimplemented from OoOJoin::AbstractWaterMarker.

isReachWMPoint()

bool OoOJoin::LatenessWM::isReachWMPoint ( OoOJoin::TrackTuplePtr  tp )

protected

When assign this final water mark, it asserts that everything earlier than window bound is arrived, so we can provide the final result

reportTupleR()

bool OoOJoin::LatenessWM::reportTupleR ( OoOJoin::TrackTuplePtr  tr, size_t  wid = 1  )

virtual

Report a tuple R into the watermark generator.

Parameters

tr	The tuple
wid	The id of window

Returns

bool, bool, whether generate watermark after receiving this Tuple

Reimplemented from OoOJoin::AbstractWaterMarker.

reportTupleS()

bool OoOJoin::LatenessWM::reportTupleS ( OoOJoin::TrackTuplePtr  ts, size_t  wid = 1  )

virtual

report a tuple s into the watermark generator

Parameters

ts	The tuple
wid	The id of window

Returns

bool, whether generate watermark after receiving this Tuple

Reimplemented from OoOJoin::AbstractWaterMarker.

setConfig()

bool OoOJoin::LatenessWM::setConfig ( INTELLI::ConfigMapPtr  cfg )

virtual

Set the config map related to this operator.

Parameters

cfg	The config map

Returns

bool whether the config is successfully set

Reimplemented from OoOJoin::AbstractWaterMarker.

Member Data Documentation

windowUpperBound

tsType OoOJoin::LatenessWM::windowUpperBound = 0

protected

Note

currently only support single window

---

The documentation for this class was generated from the following files:

• include/WaterMarker/LatenessWM.h
• src/WaterMarker/LatenessWM.cpp
