OoOJoin::TestBench Class Reference

The test bench class to feed data. More...

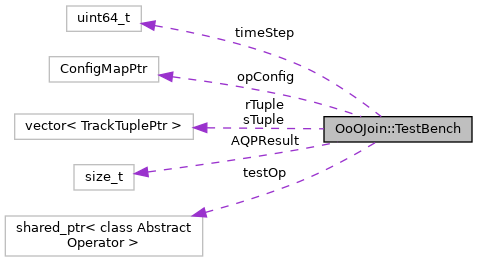

Collaboration diagram for OoOJoin::TestBench:

Public Member Functions
void	setDataLoader (std::string tag, ConfigMapPtr globalCfg)
	load a dataset according to the tag More...
size_t	sizeOfS ()
	get the size of loaded s tuple More...
size_t	sizeOfR ()
	get the size of loaded r tuple More...
void	setDataSet (std::vector< TrackTuplePtr > _r, std::vector< TrackTuplePtr > _s)
	set the dataset to feed More...
bool	setOperator (AbstractOperatorPtr op, ConfigMapPtr cfg)
	set the operator to test More...
size_t	inOrderTest (bool additionalSort)
	test the operator under in order arrival More...
size_t	OoOTest (bool additionalSort)
	test the operator under OoO arrival More...
void	logRTuples (bool skipZero=false)
	print the rTuples to logging system More...
bool	saveRTuplesToFile (string fname, bool skipZero=false)
	save the rTuples to a file More...
bool	saveSTuplesToFile (string fname, bool skipZero=false)
	save the sTuples to a file More...
double	getAvgLatency ()
	to compute average latency after run a test More...
double	getThroughput ()
	to compute the throughput after run a test More...
double	getLatencyPercentage (double fraction)
	to compute the latency t such that fraction of latency is below t More...
ConfigMapPtr	getTimeBreakDown ()
	get the break down information of processing time from the join operator tested More...

Public Attributes
std::vector< TrackTuplePtr >	rTuple
std::vector< TrackTuplePtr >	sTuple
AbstractOperatorPtr	testOp = nullptr
ConfigMapPtr	opConfig
size_t	AQPResult = 0

Protected Member Functions
void	inOrderSort (std::vector< TrackTuplePtr > &arr)
void	OoOSort (std::vector< TrackTuplePtr > &arr)
void	inlineTest (void)
void	forceInOrder (std::vector< TrackTuplePtr > &arr)

Protected Attributes
tsType	timeStep = 1

Detailed Description

The test bench class to feed data.

Note

Require config if used -"timeStep" U64 The simulation time step in us

Member Function Documentation

getAvgLatency()

double OoOJoin::TestBench::getAvgLatency

(

)

to compute average latency after run a test

Returns

the latency in us

getLatencyPercentage()

double OoOJoin::TestBench::getLatencyPercentage

(

double

fraction

)

to compute the latency t such that fraction of latency is below t

Parameters

fraction

The fraction you want to set

Returns

the latency in us

getThroughput()

double OoOJoin::TestBench::getThroughput

(

)

to compute the throughput after run a test

Returns

the throughput in tuples/s

getTimeBreakDown()

ConfigMapPtr OoOJoin::TestBench::getTimeBreakDown

(

)

get the break down information of processing time from the join operator tested

Warning

should check the nullptr of output

Returns

The ConfigMapPtr which contains breakdown information, null if no breakdown supported

inOrderTest()

size_t OoOJoin::TestBench::inOrderTest

(

bool

additionalSort

)

test the operator under in order arrival

Parameters

additionalSort

whether or not additionally sort the input

Returns

the joined result

logRTuples()

void OoOJoin::TestBench::logRTuples

(

bool

skipZero = false

)

print the rTuples to logging system

Parameters

skipZero

Whether skip the tuples whose processed time is zero

OoOTest()

size_t OoOJoin::TestBench::OoOTest

(

bool

additionalSort

)

test the operator under OoO arrival

Parameters

additionalSort

whether or not additionally sort the input

Returns

the joined result

saveRTuplesToFile()

bool OoOJoin::TestBench::saveRTuplesToFile	(	string	fname,
		bool	skipZero = false
	)

save the rTuples to a file

Parameters

fname	the name of file
skipZero	Whether skip the tuples whose processed time is zero

Returns

whether the file is written

saveSTuplesToFile()

bool OoOJoin::TestBench::saveSTuplesToFile	(	string	fname,
		bool	skipZero = false
	)

save the sTuples to a file

Parameters

fname	the name of file
skipZero	Whether skip the tuples whose processed time is zero

Returns

whether the file is written

setDataLoader()

void OoOJoin::TestBench::setDataLoader	(	std::string	tag,
		ConfigMapPtr	globalCfg
	)

load a dataset according to the tag

Parameters

tag	the name tag of DataLoader
globalCfg	the global config file to load dataset

setDataSet()

void OoOJoin::TestBench::setDataSet	(	std::vector< TrackTuplePtr >	_r,
		std::vector< TrackTuplePtr >	_s
	)

set the dataset to feed

Parameters

_r	The r tuples
_s	The s tuples

setOperator()

bool OoOJoin::TestBench::setOperator	(	OoOJoin::AbstractOperatorPtr	op,
		ConfigMapPtr	cfg
	)

set the operator to test

Parameters

op	shared pointer to operator
cfg	the config file to operator

Returns

whether the setting is successful

sizeOfR()

size_t OoOJoin::TestBench::sizeOfR ( )

inline

get the size of loaded r tuple

Returns

the size

sizeOfS()

size_t OoOJoin::TestBench::sizeOfS ( )

inline

get the size of loaded s tuple

Returns

the size

---

The documentation for this class was generated from the following files:

• include/TestBench/TestBench.h
• src/TestBench/TestBench.cpp
