OoOJoin::IAWJOperator Class Reference

The intra window join (IAWJ) operator, only considers a single window. More...

#include <Operator/IAWJOperator.h>

Inheritance diagram for OoOJoin::IAWJOperator:

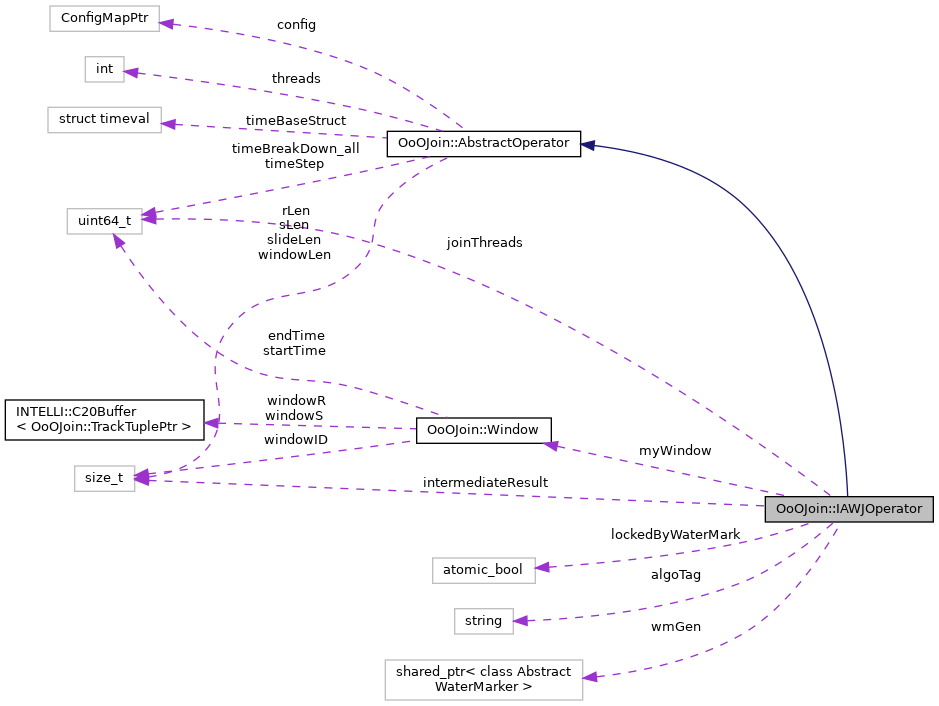

Collaboration diagram for OoOJoin::IAWJOperator:

Public Member Functions
virtual bool	setConfig (ConfigMapPtr cfg)
	Set the config map related to this operator. More...
virtual bool	feedTupleS (TrackTuplePtr ts)
	feed a tuple s into the Operator More...
virtual bool	feedTupleR (TrackTuplePtr tr)
	feed a tuple R into the Operator More...
virtual bool	start ()
	start this operator More...
virtual bool	stop ()
	stop this operator More...
virtual size_t	getResult ()
	get the joined sum result More...
Public Member Functions inherited from OoOJoin::AbstractOperator
void	setWindow (size_t _wl, size_t _sli)
	Set the window parameters of the whole operator. More...
void	setBufferLen (size_t _sLen, size_t _rLen)
	Set buffer length of S and R buffer. More...
void	syncTimeStruct (struct timeval tv)
	Synchronize the time structure with outside setting. More...
virtual size_t	getAQPResult ()
	get the joined sum result under AQP estimation More...
virtual ConfigMapPtr	getTimeBreakDown ()
	get the break down information of processing time More...

Protected Member Functions
void	conductComputation ()
Protected Member Functions inherited from OoOJoin::AbstractOperator
void	setFinalProcessedTime ()
	set the final processed time for all tuples

Protected Attributes
Window	myWindow
size_t	intermediateResult = 0
string	algoTag = "NestedLoopJoin"
uint64_t	joinThreads = 1
atomic_bool	lockedByWaterMark = false
	if operator is locked by watermark, it will never accept new incoming More...
AbstractWaterMarkerPtr	wmGen = nullptr
Protected Attributes inherited from OoOJoin::AbstractOperator
struct timeval	timeBaseStruct
size_t	windowLen = 0
size_t	slideLen = 0
size_t	sLen = 0
size_t	rLen = 0
int	threads = 0
tsType	timeStep = 0
tsType	timeBreakDown_all = 0

Additional Inherited Members
Public Attributes inherited from OoOJoin::AbstractOperator
ConfigMapPtr	config = nullptr

Detailed Description

The intra window join (IAWJ) operator, only considers a single window.

Note

require configurations:

• "windowLen" U64: The length of window
• "slideLen" U64: The length of slide
• "sLen" U64: The length of S buffer
• "rLen" U64: The length of R buffer
• "algo" String: The specific join algorithm (optional, default nested loop)
• "threads" U64: The threads to conduct intra window join (optional, default 1)
• "wmTag" String: The tag of watermarker, default is arrival for ArrivalWM

In current version, the computation will block feeding

operator tag = "IAWJ"

Member Function Documentation

feedTupleR()

bool OoOJoin::IAWJOperator::feedTupleR ( OoOJoin::TrackTuplePtr  tr )

virtual

feed a tuple R into the Operator

Parameters

tr

The tuple

Warning

The current version is simplified and assuming only used in SINGLE THREAD!

Returns

bool, whether tuple is fed.

Reimplemented from OoOJoin::AbstractOperator.

feedTupleS()

bool OoOJoin::IAWJOperator::feedTupleS ( OoOJoin::TrackTuplePtr  ts )

virtual

feed a tuple s into the Operator

Parameters

ts

The tuple

Warning

The current version is simplified and assuming only used in SINGLE THREAD!

Returns

bool, whether tuple is fed.

Reimplemented from OoOJoin::AbstractOperator.

getResult()

size_t OoOJoin::IAWJOperator::getResult ( )

virtual

get the joined sum result

Returns

The result

Reimplemented from OoOJoin::AbstractOperator.

setConfig()

bool OoOJoin::IAWJOperator::setConfig ( INTELLI::ConfigMapPtr  cfg )

virtual

Set the config map related to this operator.

Todo:

Where this operator is conducting join is still putting rotten, try to place it at feedTupleS/R

Parameters

cfg	The config map

Returns

bool whether the config is successfully set

Reimplemented from OoOJoin::AbstractOperator.

start()

bool OoOJoin::IAWJOperator::start ( )

virtual

start this operator

Returns

bool, whether start successfully

set watermark generator

Note

:

set window

Reimplemented from OoOJoin::AbstractOperator.

stop()

bool OoOJoin::IAWJOperator::stop ( )

virtual

stop this operator

Returns

bool, whether start successfully

Reimplemented from OoOJoin::AbstractOperator.

Member Data Documentation

lockedByWaterMark

atomic_bool OoOJoin::IAWJOperator::lockedByWaterMark = false

protected

if operator is locked by watermark, it will never accept new incoming

Todo:

current implementation is putting rotten, fix later

---

The documentation for this class was generated from the following files:

• include/Operator/IAWJOperator.h
• src/Operator/IAWJOperator.cpp
