OoOJoin::AbstractOperator Class Reference

The abstraction to describe a join operator, providing virtual function of using the operation. More...

#include <AbstractOperator.h>

Inheritance diagram for OoOJoin::AbstractOperator:

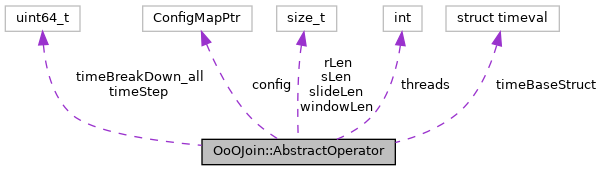

Collaboration diagram for OoOJoin::AbstractOperator:

Public Member Functions
void	setWindow (size_t _wl, size_t _sli)
	Set the window parameters of the whole operator. More...
void	setBufferLen (size_t _sLen, size_t _rLen)
	Set buffer length of S and R buffer. More...
void	syncTimeStruct (struct timeval tv)
	Synchronize the time structure with outside setting. More...
virtual bool	setConfig (ConfigMapPtr cfg)
	Set the config map related to this operator. More...
virtual bool	feedTupleS (TrackTuplePtr ts)
	feed a tuple s into the Operator More...
virtual bool	feedTupleR (TrackTuplePtr tr)
	feed a tuple R into the Operator More...
virtual bool	start ()
	start this operator More...
virtual bool	stop ()
	stop this operator More...
virtual size_t	getResult ()
	get the joined sum result More...
virtual size_t	getAQPResult ()
	get the joined sum result under AQP estimation More...
virtual ConfigMapPtr	getTimeBreakDown ()
	get the break down information of processing time More...

Public Attributes
ConfigMapPtr	config = nullptr

Protected Member Functions
void	setFinalProcessedTime ()
	set the final processed time for all tuples

Protected Attributes
struct timeval	timeBaseStruct
size_t	windowLen = 0
size_t	slideLen = 0
size_t	sLen = 0
size_t	rLen = 0
int	threads = 0
tsType	timeStep = 0
tsType	timeBreakDown_all = 0

Detailed Description

The abstraction to describe a join operator, providing virtual function of using the operation.

Todo:

Finish the watermark generator part

Note

require configurations:

• "windowLen" U64: The length of window, real-world time in us
• "slideLen" U64: The length of slide, real world time in us
• "sLen" U64: The length of S buffer
• "rLen" U64: The length of R buffer
• "timeStep" U64. Internal simulation step in us

Member Function Documentation

feedTupleR()

bool OoOJoin::AbstractOperator::feedTupleR ( OoOJoin::TrackTuplePtr  tr )

virtual

feed a tuple R into the Operator

Parameters

tr

The tuple

Warning

The current version is simplified and assuming only used in SINGLE THREAD!

Returns

bool, whether tuple is fed.

Reimplemented in OoOJoin::MeanAQPIAWJOperator, OoOJoin::IMAIAWJOperator, and OoOJoin::IAWJOperator.

feedTupleS()

bool OoOJoin::AbstractOperator::feedTupleS ( OoOJoin::TrackTuplePtr  ts )

virtual

feed a tuple s into the Operator

Parameters

ts

The tuple

Warning

The current version is simplified and assuming only used in SINGLE THREAD!

Returns

bool, whether tuple is fed.

Reimplemented in OoOJoin::MeanAQPIAWJOperator, OoOJoin::IMAIAWJOperator, and OoOJoin::IAWJOperator.

getAQPResult()

size_t OoOJoin::AbstractOperator::getAQPResult ( )

virtual

get the joined sum result under AQP estimation

Returns

The result

Reimplemented in OoOJoin::MeanAQPIAWJOperator, and OoOJoin::IMAIAWJOperator.

getResult()

size_t OoOJoin::AbstractOperator::getResult ( )

virtual

get the joined sum result

Returns

The result

Reimplemented in OoOJoin::MeanAQPIAWJOperator, OoOJoin::IMAIAWJOperator, and OoOJoin::IAWJOperator.

getTimeBreakDown()

ConfigMapPtr OoOJoin::AbstractOperator::getTimeBreakDown ( )

virtual

get the break down information of processing time

Warning

should check the nullptr of output

Returns

The ConfigMapPtr which contains breakdown information, null if no breakdown supported

Reimplemented in OoOJoin::MeanAQPIAWJOperator.

setBufferLen()

void OoOJoin::AbstractOperator::setBufferLen ( size_t  _sLen, size_t  _rLen  )

inline

Set buffer length of S and R buffer.

Parameters

_sLen	the length of S buffer
_rLen	the length of R buffer

setConfig()

bool OoOJoin::AbstractOperator::setConfig ( INTELLI::ConfigMapPtr  cfg )

virtual

Set the config map related to this operator.

Parameters

cfg	The config map

Returns

bool whether the config is successfully set

Reimplemented in OoOJoin::MeanAQPIAWJOperator, OoOJoin::IMAIAWJOperator, and OoOJoin::IAWJOperator.

setWindow()

void OoOJoin::AbstractOperator::setWindow ( size_t  _wl, size_t  _sli  )

inline

Set the window parameters of the whole operator.

Parameters

_wl	window length
_sli	slide length

start()

bool OoOJoin::AbstractOperator::start ( )

virtual

start this operator

Returns

bool, whether start successfully

Reimplemented in OoOJoin::MeanAQPIAWJOperator, OoOJoin::IMAIAWJOperator, and OoOJoin::IAWJOperator.

stop()

bool OoOJoin::AbstractOperator::stop ( )

virtual

stop this operator

Returns

bool, whether start successfully

Reimplemented in OoOJoin::MeanAQPIAWJOperator, OoOJoin::IMAIAWJOperator, and OoOJoin::IAWJOperator.

syncTimeStruct()

void OoOJoin::AbstractOperator::syncTimeStruct ( struct timeval  tv )

inline

Synchronize the time structure with outside setting.

Parameters

tv	The outside time structure

---

The documentation for this class was generated from the following files:

• include/Operator/AbstractOperator.h
• src/Operator/AbstractOperator.cpp
