The intra window join (MeanAQPIAWJ) operator under the simplest AQP strategy, only considers a single window and uses exponential weighted moving average for prediction. More...

#include <Operator/MeanAQPIAWJOperator.h>

Inheritance diagram for OoOJoin::MeanAQPIAWJOperator:

[legend]

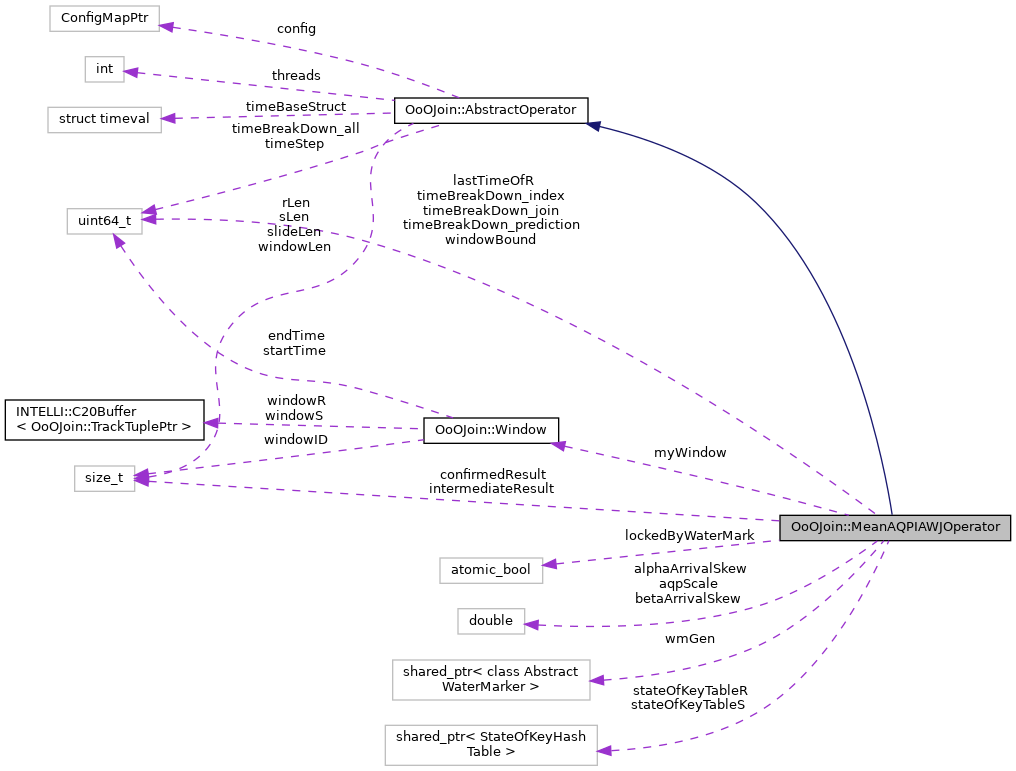

Collaboration diagram for OoOJoin::MeanAQPIAWJOperator:

[legend]

Classes
class	MeanStateOfKey

Public Member Functions
virtual bool	setConfig (ConfigMapPtr cfg)
	Set the config map related to this operator. More...

virtual bool	feedTupleS (TrackTuplePtr ts)
	feed a tuple s into the Operator More...

virtual bool	feedTupleR (TrackTuplePtr tr)
	feed a tuple R into the Operator More...

virtual bool	start ()
	start this operator More...

virtual bool	stop ()
	stop this operator More...

virtual size_t	getResult ()
	get the joined sum result More...

virtual size_t	getAQPResult ()
	get the joined sum result under AQP More...

virtual ConfigMapPtr	getTimeBreakDown ()
	get the break down information of processing time More...

Public Member Functions inherited from OoOJoin::AbstractOperator
void	setWindow (size_t _wl, size_t _sli)
	Set the window parameters of the whole operator. More...

void	setBufferLen (size_t _sLen, size_t _rLen)
	Set buffer length of S and R buffer. More...

void	syncTimeStruct (struct timeval tv)
	Synchronize the time structure with outside setting. More...

Protected Types
typedef std::shared_ptr< MeanStateOfKey >	MeanStateOfKeyPtr

Protected Member Functions
void	conductComputation ()

void	updateStateOfKey (MeanStateOfKeyPtr sk, TrackTuplePtr tp)

void	lazyComputeOfAQP ()

double	predictUnarrivedTuples (MeanStateOfKeyPtr px)

Protected Member Functions inherited from OoOJoin::AbstractOperator
void	setFinalProcessedTime ()
	set the final processed time for all tuples

Protected Attributes
Window	myWindow

size_t	intermediateResult = 0

size_t	confirmedResult = 0

uint64_t	windowBound = 0

double	alphaArrivalSkew = 0.125

double	betaArrivalSkew = 0.25

double	aqpScale = 0.1

atomic_bool	lockedByWaterMark = false

AbstractWaterMarkerPtr	wmGen = nullptr

StateOfKeyHashTablePtr	stateOfKeyTableR

StateOfKeyHashTablePtr	stateOfKeyTableS

tsType	lastTimeOfR = 0

tsType	timeBreakDown_index
	for time breakdown of searching index

tsType	timeBreakDown_prediction
	for time breakdown of prediction

tsType	timeBreakDown_join
	for time breakdown of join

Protected Attributes inherited from OoOJoin::AbstractOperator
struct timeval	timeBaseStruct

size_t	windowLen = 0

size_t	slideLen = 0

size_t	sLen = 0

size_t	rLen = 0

int	threads = 0

tsType	timeStep = 0

tsType	timeBreakDown_all = 0

Additional Inherited Members
Public Attributes inherited from OoOJoin::AbstractOperator
ConfigMapPtr	config = nullptr

Detailed Description

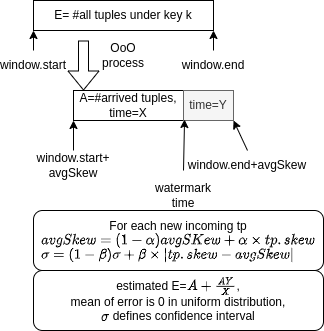

The intra window join (MeanAQPIAWJ) operator under the simplest AQP strategy, only considers a single window and uses exponential weighted moving average for prediction.

Note

require configurations:

"windowLen" U64: The length of window
"slideLen" U64: The length of slide
"sLen" U64: The length of S buffer
"rLen" U64: The length of R buffer
"wmTag" String: The tag of watermarker, default is arrival for ArrivalWM

Warning: This implementation is putting rotten, just to explore a basic idea of AQP by using historical mean to predict future; The predictor and watermarker are currently NOT seperated in this operator, split them in the future!

Note: In current version, the computation will block feeding; follows the assumption of linear independent arrival and skewness; operator tag = "MeanAQP"

Member Function Documentation

◆ feedTupleR()

bool OoOJoin::MeanAQPIAWJOperator::feedTupleR ( OoOJoin::TrackTuplePtr tr )

virtual

feed a tuple R into the Operator

Parameters

tr The tuple

Warning: The current version is simplified and assuming only used in SINGLE THREAD!

Returns: bool, whether tuple is fed.

Reimplemented from OoOJoin::AbstractOperator.

Reimplemented in OoOJoin::IMAIAWJOperator.

◆ feedTupleS()

bool OoOJoin::MeanAQPIAWJOperator::feedTupleS ( OoOJoin::TrackTuplePtr ts )

virtual

feed a tuple s into the Operator

Parameters

ts The tuple

Warning: The current version is simplified and assuming only used in SINGLE THREAD!

Returns: bool, whether tuple is fed.

Reimplemented from OoOJoin::AbstractOperator.

Reimplemented in OoOJoin::IMAIAWJOperator.

◆ getAQPResult()

size_t OoOJoin::MeanAQPIAWJOperator::getAQPResult ( )

virtual

get the joined sum result under AQP

Returns: The result

Reimplemented from OoOJoin::AbstractOperator.

Reimplemented in OoOJoin::IMAIAWJOperator.

◆ getResult()

size_t OoOJoin::MeanAQPIAWJOperator::getResult ( )

virtual

get the joined sum result

Returns: The result

Reimplemented from OoOJoin::AbstractOperator.

Reimplemented in OoOJoin::IMAIAWJOperator.

◆ getTimeBreakDown()

ConfigMapPtr OoOJoin::MeanAQPIAWJOperator::getTimeBreakDown ( )

virtual

get the break down information of processing time

Warning: should check the nullptr of output

Returns: The ConfigMapPtr which contains breakdown information, null if no breakdown supported

Note

provided breakdown:

"index" U64, processing time on prediction for indexing the tuple state in hhash table
"prediction" U64, processing time on prediction
"join" U64, processing time on prediction The total processing time=index+prediction+join

Reimplemented from OoOJoin::AbstractOperator.
